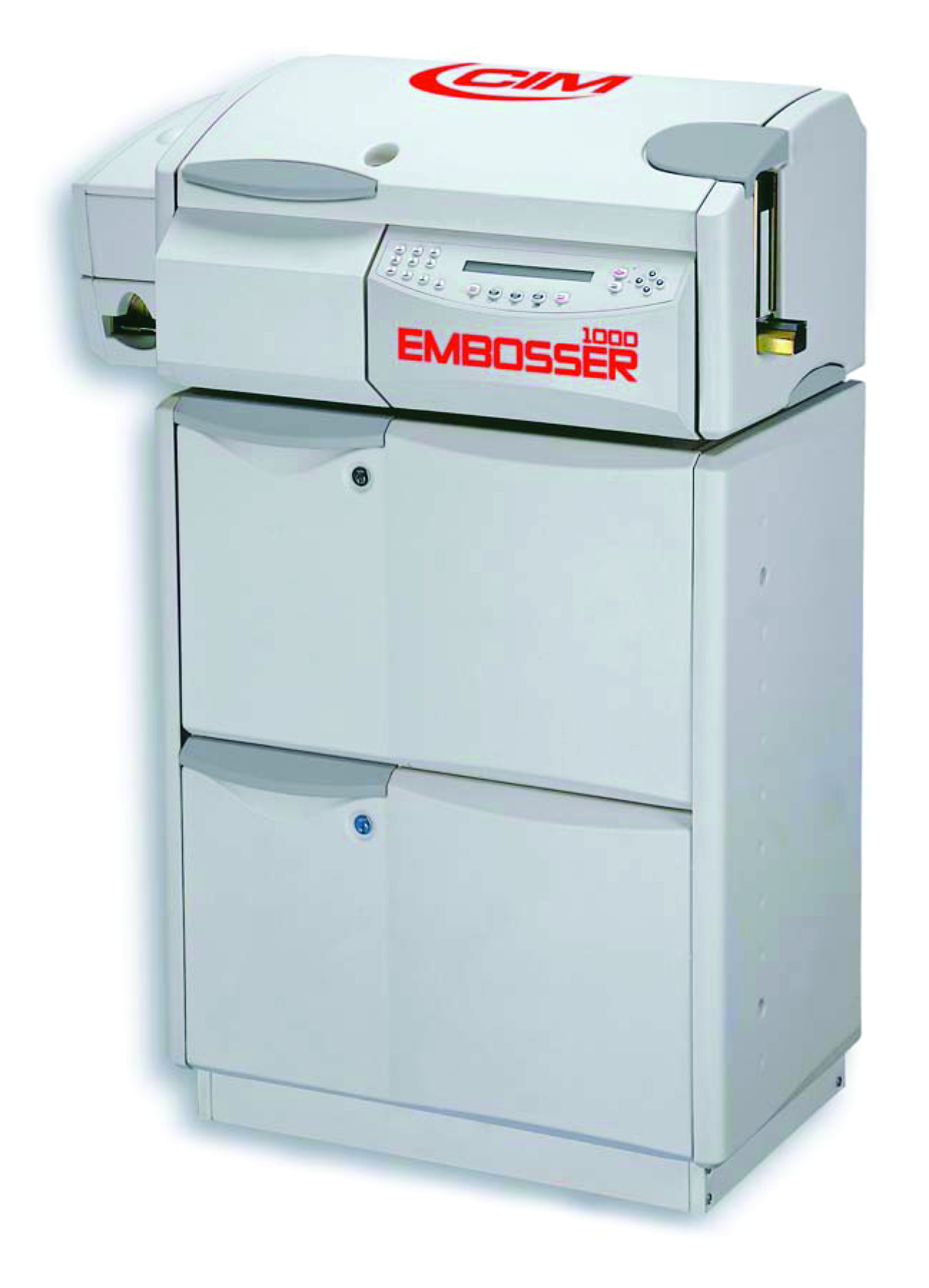

The Embosser 1000 is the ideal solution for a variety of personalisation needs - it combines desktop dimensions with heavy duty performance
500 CPH
Equipped with the MSP system (Multi Smart Processing) allowing 3 cards to be processed simultaneously
FIFO (first in - first out) input hopper with a 200 card capacity
Available with special characters to meet the requirements of VISA and MasterCard for personalisation of international credit cards

Available options	Infill device in front version (font OCR B1) or in rear (font OCR A1 or MasterCard) . Auxiliary printer port. Chip contact initializing. Floor stand unit for Pro-Series.
Built-in tipper unit	Off-line tipping possibility (11 lines) . Ribbon saving feature.
Communication interface	Serial RS232 port.
Dimensions and weight	860 x 480 x 350 mm x 62 kg. (34"x19"x13,75"x138 lbs)
Drum capacity	Drum capacity: 105 characters, embossing and/or infill.
Electrical requirements	117 V / 60 Hz -220 V / 50 Hz.
Input hopper capacity	200 cards. Pre-embossed card automatic feed feature.
Magnetic stripe encoding	3 Tracks ISO 7811, LoCo-MeCo/HiCo.
Output hopper capacity	200 embossed cards. Reject hopper.
Performance	Approx. 500 CPH. Multi Parallel Processing System: 3 cards simultaneously processed.
Software	Windows based application software. Firmware: self diagnostic, selectable automatic repeat card, pre-embossed card reading with full post processing of the same card, resettable and non resettable counters. System status and diagnostic
