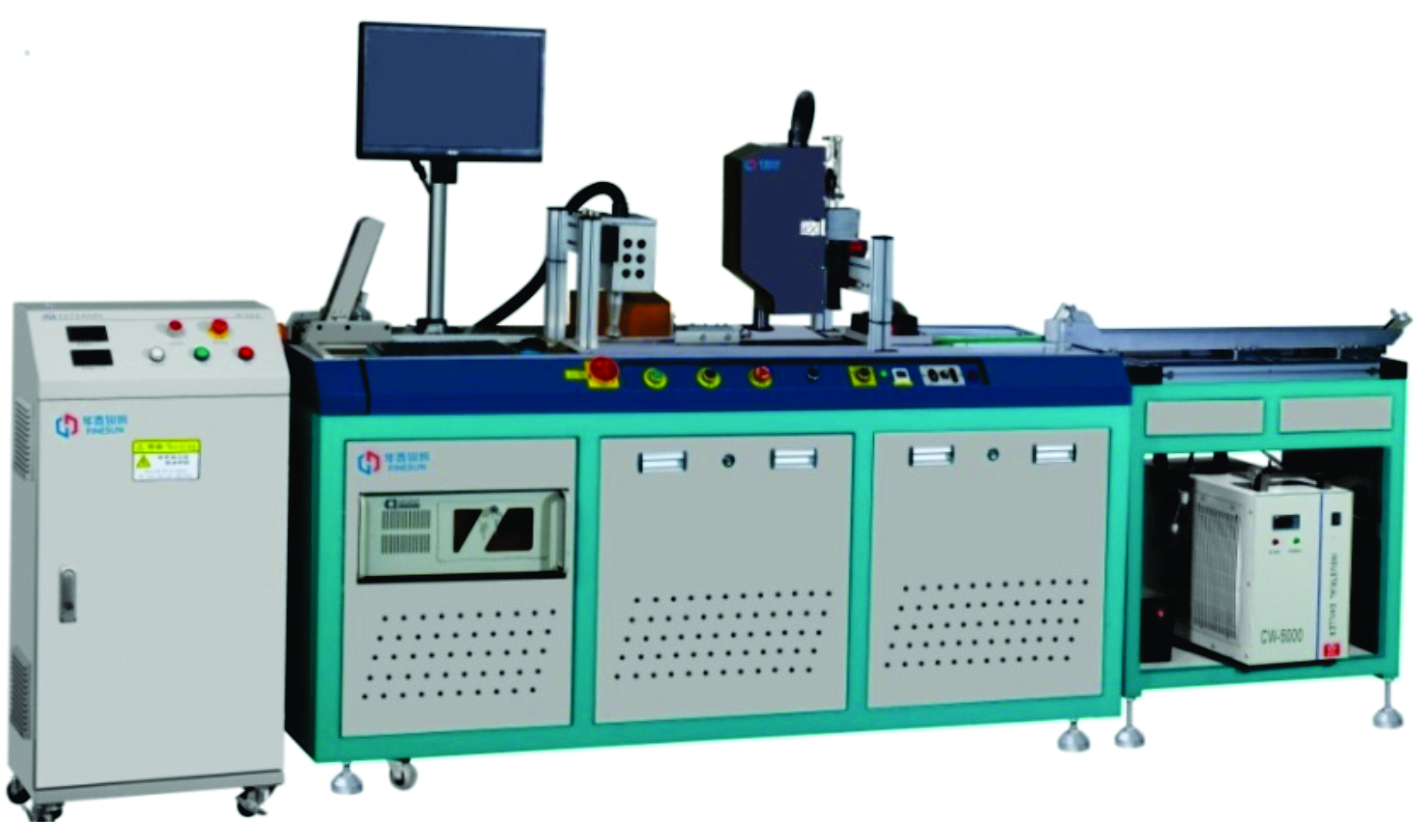

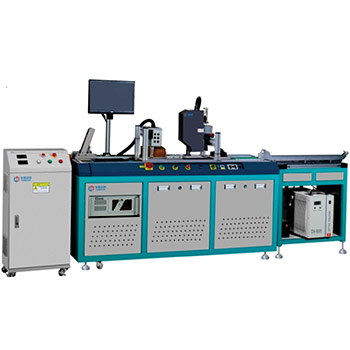

This machine combines feeding, contactless IC ( for IC & ID card ) read and write, magnetic card read and write, encode, plasma treatment, DOD printing, visual inspect, label , reject and UV dry function together, which can be chose by customer for different requirement.
The machine applies IPC to control, after encode, read and write, printing, CCD will inspect the printed data, reject the NG card to fixed card box. Equipped with two set of printing system can print on dual side of the card.
Power source | 220V 50HZ |
Total power | 14 KW |
Air source | 6kg/cm2 |
Air Consumption | 10L/min |
Output | 6000-10000 pc/hour |
Card thick | 0.3-1.0mm standard card |
Card width | 30-120mm |
Weight | 1200kg |
Overall dimension | L6500mm X W900mm X H1500mm |
