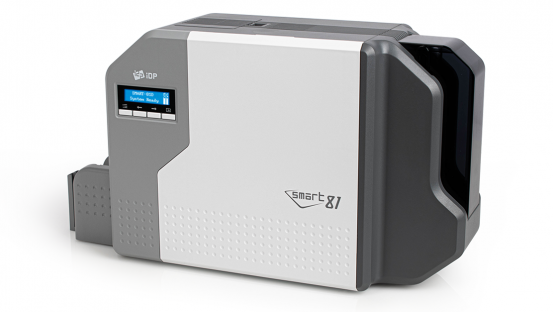

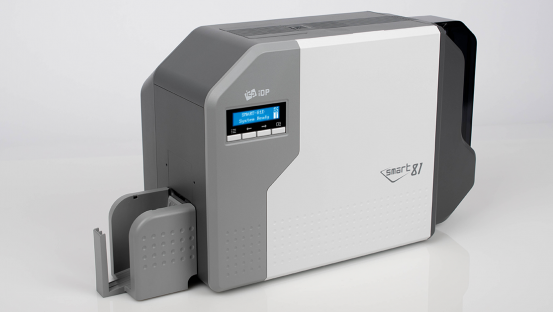

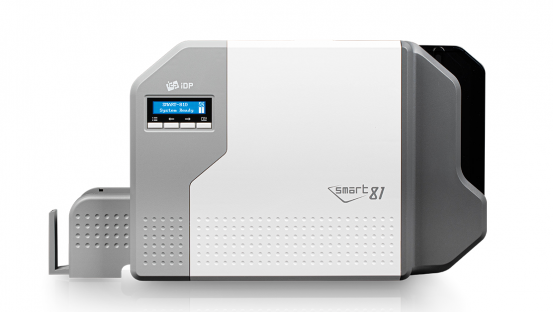

Smart 81D

From the initial design of the SMART-81D, IDP has taken careful consideration of the end-user to create an easy to use and flexible card printer.
  • Innovative Retransfer Head Heating Control - Heat up & Print ready in only seconds
  • Intelligent Anti-dust circulation
  • Rapid Retransfer Printing Technology
  • High Volume Capacity
  • Fastest Boot-up speed & User-friendly Graphical Interface LCD
  • Internal Flipper Mechanism & Error card Bin
  • Complies with International Banking Instant Issuance Security Standards
  • Technical Parameters
    • New Input Hooper (200 cards with cover open | 100 cards in default)
    • Color & Mono Dual-Sided Printing
    • IPrint Speed: Max. 43 sec./card (YMCKK)
    • High volume capacity (up to 200 cards)
    • Robust & Innovative Product design
    • All-in-one Lock system (Option)
    • Infinity Edge Printing Quality
    • Advanced Security Compliant
  • Specification
    • Printing
    Print Type Dye-Sublimation / Resin Thermal Retransfer
    Print Area Dual-Sided | Infinity-edge / Full Bleed
    Resolution 300dpi
    Card
    Card Feeding Automatic
    Card Size ISO CR80 (54mm x 86mm / 2.12 x 3.38)
    Card Thickness 0.76mm (30mil) ∼ 1.2mm (47mil)
    Card Type PVC, PC, PET, Composite PVC
    Print Speed
    Single Side Max. 25 sec./card (144 cards/hour
    Dual Side Max. 43 sec./card (84 cards/hour)
    Capacity
    Input Hooper 200 Cards
    Output Hooper 100 Cards
    Error card bin 25 Cards
    System
    Display & Control Panel 2 Line Graphic LCD Indicator / 4 Buttons
    Supported Platforms Microsoft Windows 7/ 8 /10 /11, Mac OS, Linux
    Communication USB, Ethernet
    Power Supply AC 100/240V, 50 ∼ 60Hz 2.5A
    Power Consumption (Max) 2.5A
    Temperature / Humidity 15 ∼ 35 C / 35 ∼ 70%
    Dimensions
    Dimension (W x L x H) 460 x 224 x 310 / 18.1 x 8.8 x 12.2
    Kg/lbs 11.4 / 25.13
    Options
    Security Physical & Electronic Locking System
    WiFi IEEE 802.11 a/ b/ g/ n
    Encoding
    Magnetic ISO 7811 (Track I, II, III Read/ Write, HiCo/ LoCo)
    Contact Smartcard ISO 7816 (ID-1)
    Contactless Smartcard ISO 14443 (Type A/ B), ISO 18092(NFC), MIFARE, DESFIRE

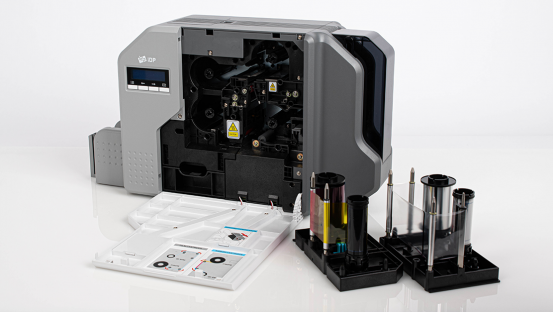

  • Consumables
    • Color Ribbons
    YMCK 500 Cards/Roll Full Color Ribbon with Resin Black
    YMCKK 500 Cards/Roll Full Color Ribbon with Resin Black & Resin Black for Back Side
    Retransfer Film
    Retransfer Film 500 Cards/Roll
    Ribbon & Film Package
    YMCK & Retransfer Film 500 Cards/Each roll Full Color Ribbon with Resin Black & Retransfer Film
