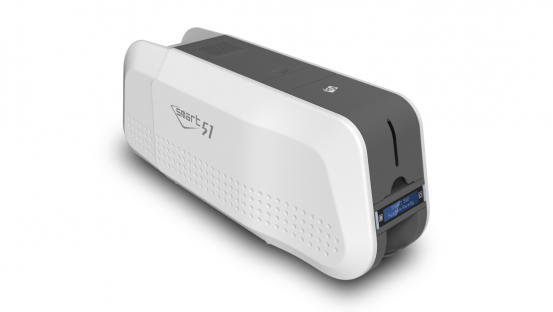

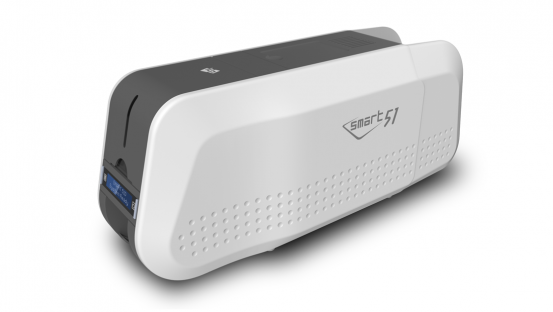

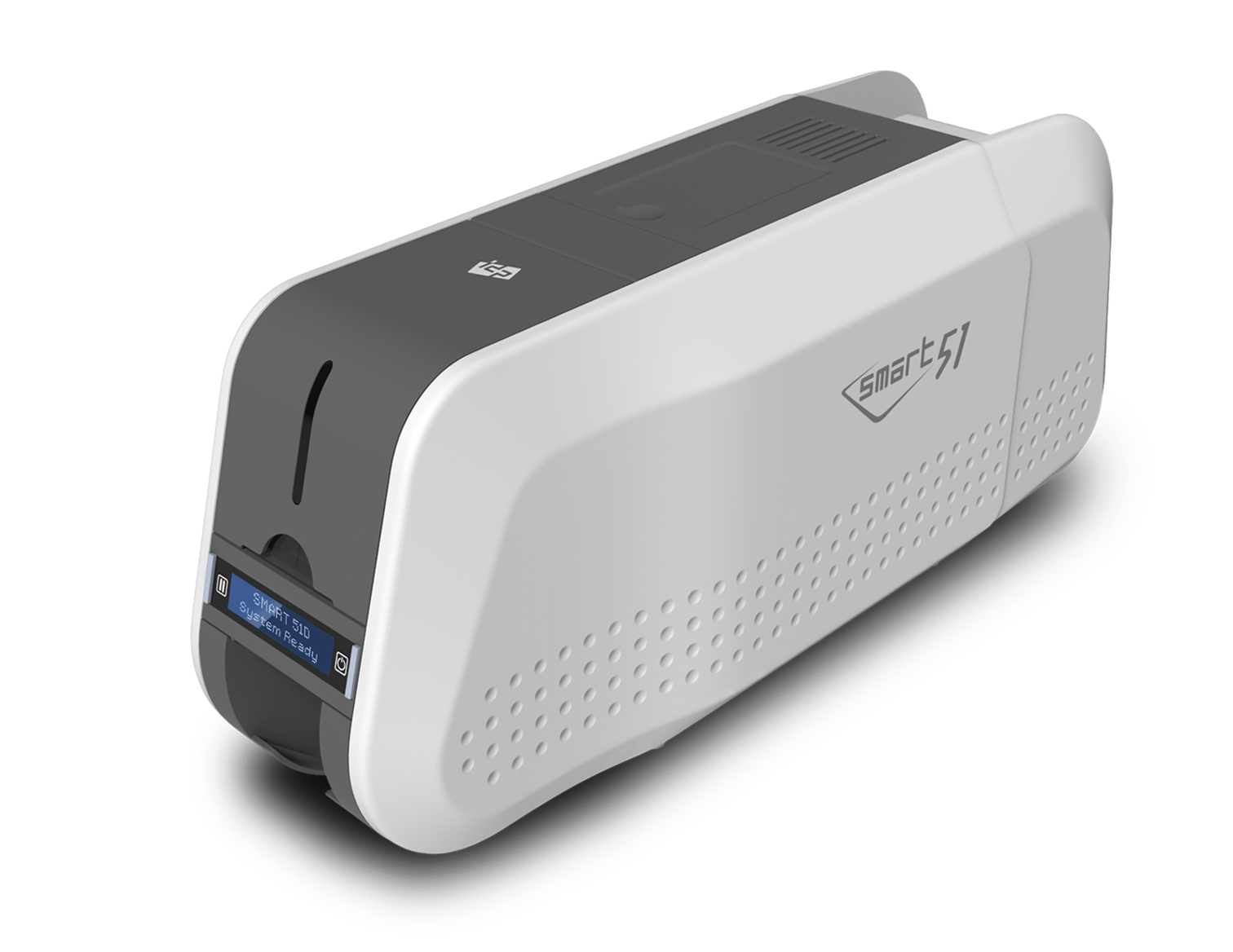

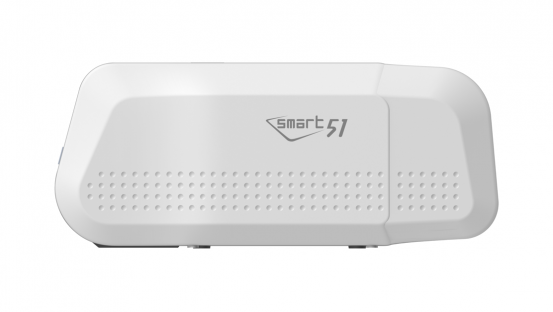

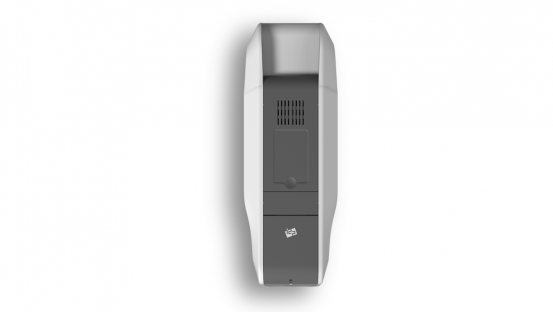

Smart 51D

From the initial design of the SMART-51D, IDP has taken careful consideration of the end-user to create an easy to use and flexible card printer.
  • Improvement of Print Speed
  • Enhanced FINE Imaging Technology
  • New Input Hopper
  • Removable Output Hopper
  • Support of Transparent Cards
  • Cartridge type Laminate Film Loading
  • Support of CR79 Cards
  • Front-Side Mag Encoding
  • All-in-One type Lock System
  • Technical Parameters
    • New Input Hooper (200 cards with cover open | 100 cards in default)
    • Removable Output Hopper
    • Improvement of Print speed
    • Enhanced FINE Imaging Technology
    • State-of-the-art CPU
    • Reduced Printing Noise
    • All-in-one Lock system (Option)
    • Easy to Handle Laminate Film Cartridge
    • Rear-side Stacker (up to 100 cards, Option)
    • Front-side Mag Encoding (Option)
    • Support of Transparent Card
    • Support CR79 Type (Factory-installed,Option)
  • Specification
    • Printing
    Print Type Dye-Sublimation
    Print Area Edge to Edge
    Resolution 300 dpi
    Dual Side Printing Yes
    Card
    Card Feeding Automatic
    Card Size ISO CR80 or ISO CR79 (Option-Factory installed)
    Card Thickness 0.38mm (15mil) ∼ 1.0mm (40mil)
    Card Type PVC, Composite PVC, PET
    Print Speed
    Monochrome 5 sec./ (720 cards/hour)
    YMCKO 22sec./card (164cards/hour) Max. 18sec./card (200cards/hour)
    YMCKOK Max. 22 sec./card (164 cards/hour)
    Capacity
    Input Hooper 100 Cards / 200 Cards with cover open
    Output Hooper Front : 40 Cards / Rear : 100 Cards (Optional Rear-side Stacker)
    System
    Display & Control Panel 2 Line LCD / 2 LED Buttons
    Supported Platforms Microsoft Windows 2000/2003/XP/Vista/7/8, Mac OS, Linux
    Communication USB, Ethernet (Option)
    Power Supply Free Voltage (AC 100/220V, 50 ∼ 60Hz)
    Power Consumption (Max) 48W
    Temperature / Humidity 15 ∼ 350C / 35 ∼ 70%
    Security
    Physical Lock All-in-One Lock system (Option)
    Kensington Lock Option
    Dimensions
    Dimension (W x L x H) 165 x 498 x 210 / 6.5 x 19.6 x 8.3
    Kg/lbs 5.2 / 11.5
    Encoding Options
    Magnetic ISO 7811 (Track I, II, III Read / Write) , HiCo/LoCo, JIS II
    Contact Smartcard ISO 7816 (ID -1)
    Contactless Smartcard MIFARE, ISO 14443 (Type A/ B), ISO 15693, DESFIRE, iCLASS
  • Consumables
    • Color Ribbons
    YMCKO 250 Cards Roll Full Color Ribbon with UV Panel, Resin Black and Overlay
    YMCFKO 200 Cards Roll Full Color Ribbon with UV Panel, Resin Black and Overlay
    HYMCKO 350 Cards Roll Half Panel Size Color Ribbon with Resin Black and Overlay
    YMCKOK 200 Cards Roll Full Color Ribbon with Resin Black, Overlay & Black for Back Side
    Mono Ribbons
    KO 600 Cards/Roll Black with Overlay
    K 1200Cards/Roll Black
    W 1200Cards/Roll White
    B 1200Cards/Roll Blue
    R 1200Cards/Roll Red
    MG 1200Cards/Roll Metallic Gold
    MS 1200Cards/Roll Metallic Sliver
    SO 1200Cards/Roll Scratch-Off
    Security Films
    HPF 250 Cards/roll Hologram Patch Film
    CPF 250 Cards/roll Clear Patch Film
