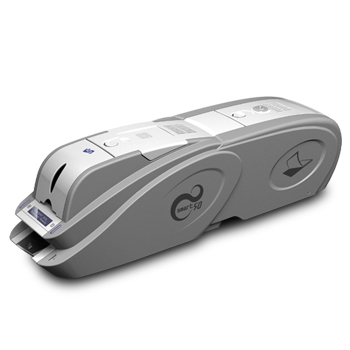

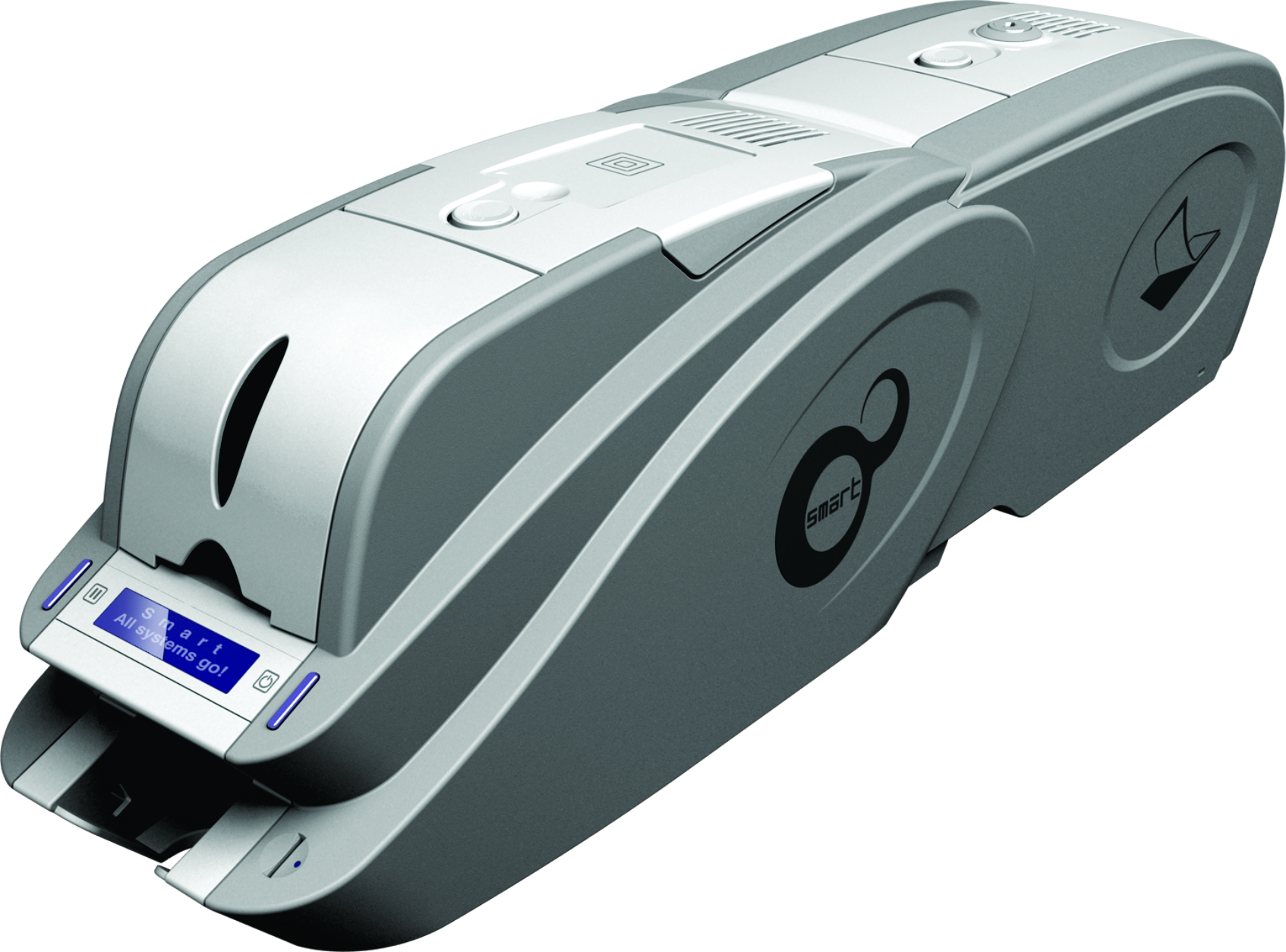

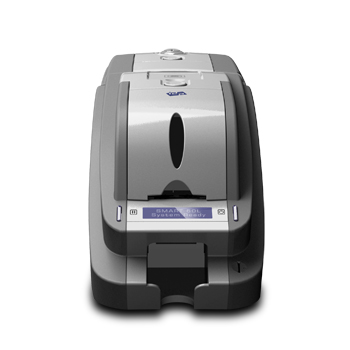

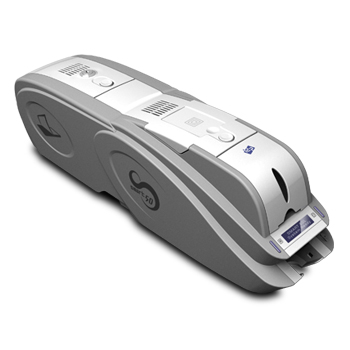

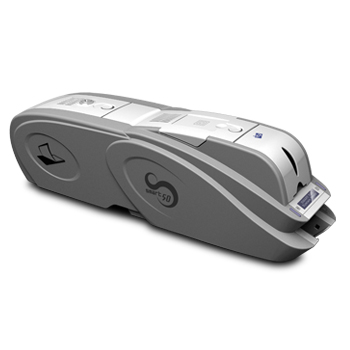

SMART-50L Printer produces long - life cards for ID and access control with customizable security features and ability to print smart cards. To cater to expanding requirement in card security,SMART-50L DLW (Direct Laminating in a Wink) technology provides the moststable & fast laminating solutions.
When it comes to security and durability,SMART-50L provides premium protection for ID card.
| Printing | |
|---|---|
| Print Type | Dye-Sublimation |
| Print Area | Edge to Edge |
| Resolution | 300 dpi |
| Dual Side Printing | Yes (Flipper Installed) |
| Card | |
| Card Feeding | Automatic |
| Card Size | ISO CR80 (54mm x 86mm / 2.12" x 3.38") |
| Card Thickness | 0.38mm (15mil) ∼ 1.0mm (40mil) |
| Card Type | PVC, Composite PVC, PET |
| Print Speed | |
| Monochrome | 5 sec./ (720 cards/hour) |
| YMCKO | 22sec./card (164cards/hour) Max. 18sec./card (200cards/hour) |
| YMCKOK | 27 sec./card (130 cards/hour) Max. 23sec./card (155 cards/hour) |
| Laminating | |
| Laminating Mode | Single & Dual Lamination |
| Laminating Film | 0.6mil,1.0mil (clear & Holographic) |
| Simultaneous:23sec. (YMCK,single Lamination) | |
| Laminating Speed | Simultaneous:33sec. (YMCKK,single Lamination) |
| One by One:44sec. (YMCK,single lamination) | |
| One by One:54sec. (YMCKK,single lamination) | |
| Capacity | |
| Input Hooper | 100 Cards |
| Output Hooper | 40 Cards |
| System | |
| Memory | 64MB RAM |
| Display | 2 lines LED Display |
| Control Panel | 2 LED Button |
| Supported Platforms | Microsoft Windows 2000/2003/XP/Vista/7/8, Mac OS, Linux |
| Communication | USB, Ethernet (Option) |
| Power Supply | Free Voltage (AC 110/220V, 50 ∼ 60Hz) |
| Power Consumption (Max) | 96W |
| Temperature / Humidity | 15 ∼ 350C / 20 ∼ 80% |
| Dimensions | |
| Dimension (W x L x H) | 170 mm x 900mm x 195mm |
| Weight | 9.2 kg / 20lbs |
| Encoding Options | |
| Magnetic | ISO 7811 (Track I, II, III Read / Write) , HiCo/LoCo, JIS II |
| Contact Smartcard | ISO 7816 (ID -1) |
| Contactless Smartcard | MIFARE, ISO 14443 (Type A / B) , |
| (Internal & External) | ISO 15693, DESFIRE, iCLASS |
| Certifications | CB, CE, FCC, KC ,C-tick, UL, BIS |
