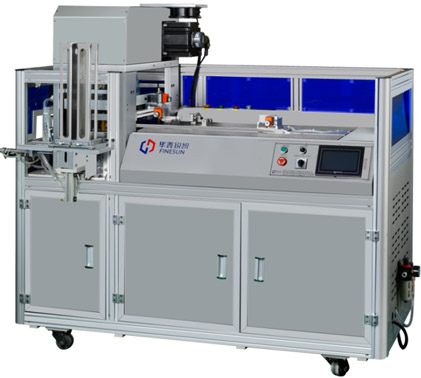

HX-SCP120 Semi-automatic punching machine
- Overview
This machine adopt PLC control, incorporating automatic feed material, sensor positioning, hydraulic pressure punching and card collecting card-base punching equipment.
- High sensitivity photoelectric sensor fit to imported servo system feed material, each punching location parameter can be adjusted, high precision punching effect.
- Adopt import ball screw, guide rail, servo motor stepping feed material, high precision, long operating life
- Big power, large torque servo as punching motivity, fast punching speed, big punching motivity and punching products edge more smooth.
- In-sequence card collecting construction, can collect all cards in sequence and meet to customer individuation card collecting requirement.
- Double collecting card box switch, collecting card box can load 500pcs Standard card, card collecting box can be remove, card mount more convenience and fast speed
- Technical Parameters
| Voltage |
380V 50HZ |
| Air source |
6Kg/cm2 |
| Suitable for |
PVC, PET, PETG, PAPER CARD, MIXED MATERIAL....... |
| Suitable for |
3X8, 4X8, 5X5 |
| Control method |
PLC programme +servo motor |
| Output |
8000-10000 pcs/h standard card （the more punching head the more output） |
| Total Power |
8.5KW |
| Weight |
1100Kg |
| Dimension |
L1700mm X W2300mm |
